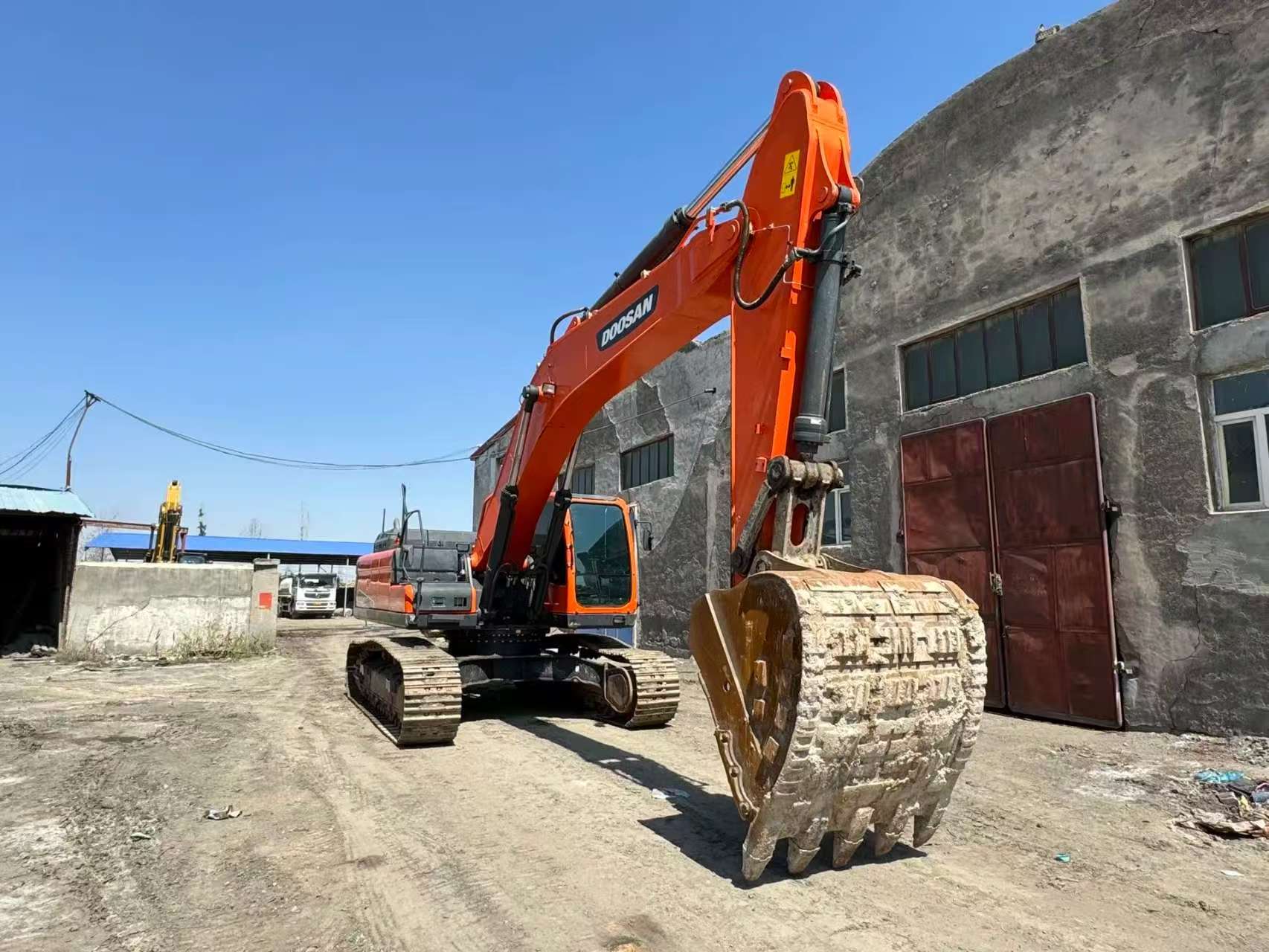

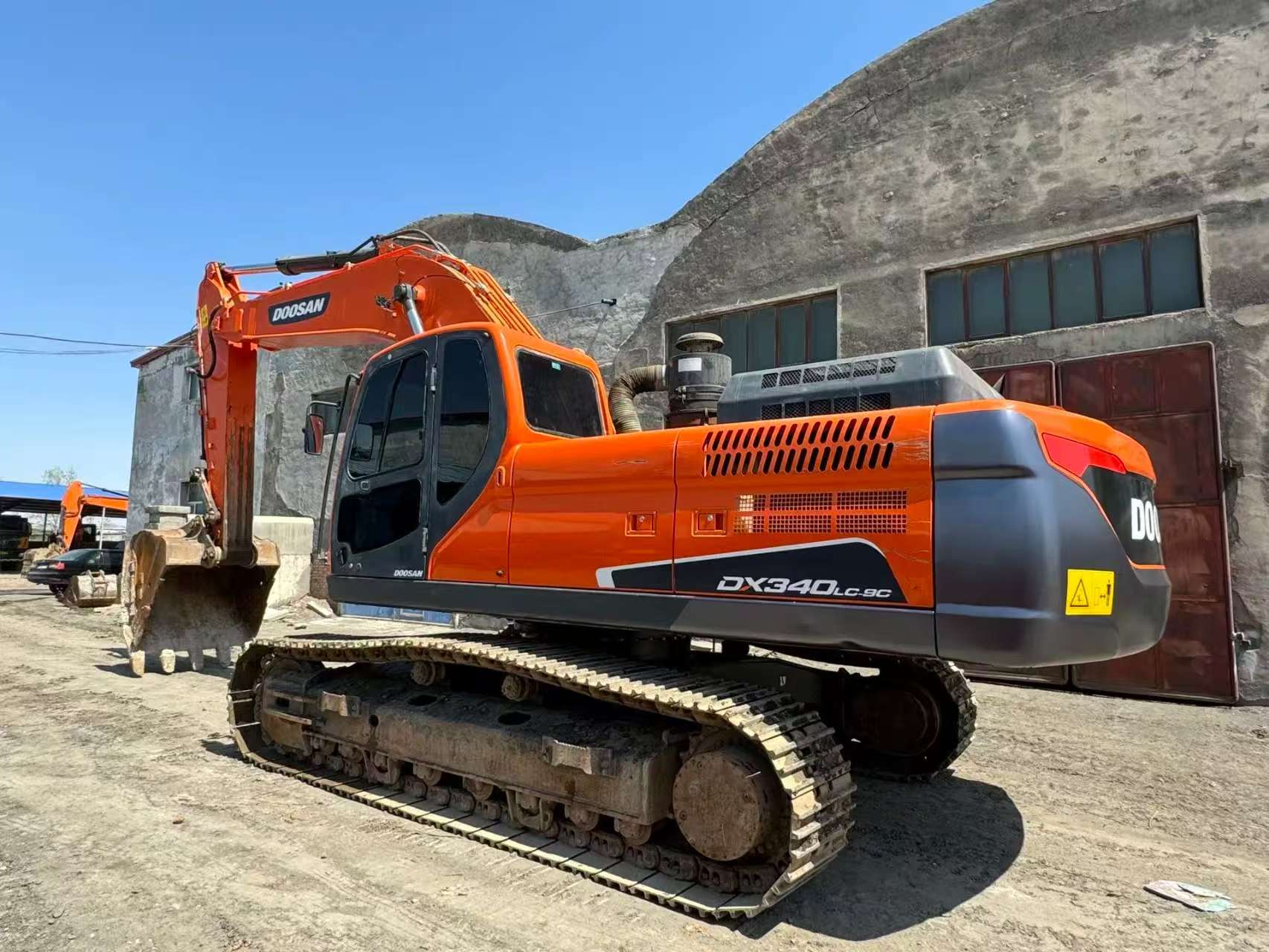

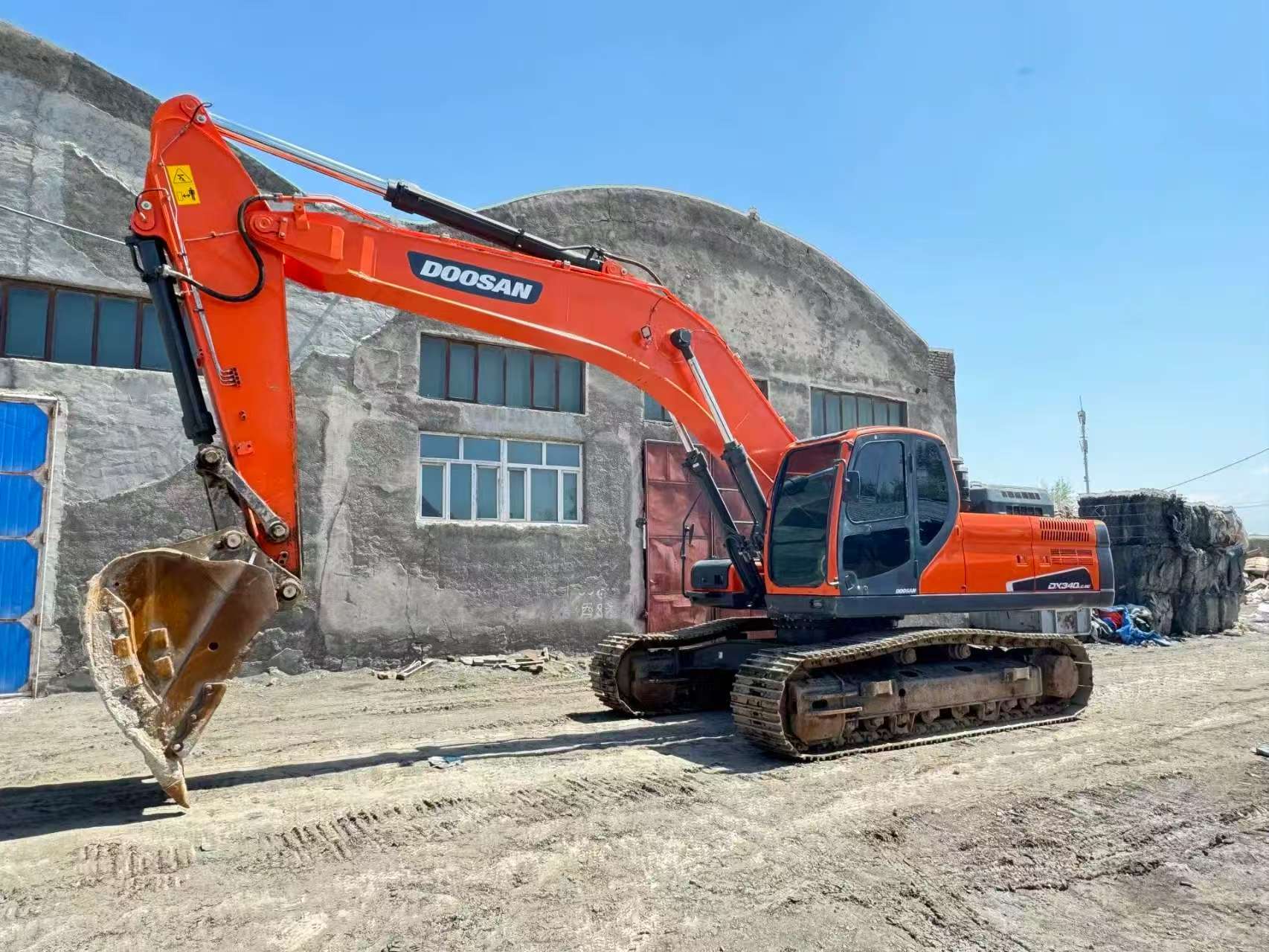

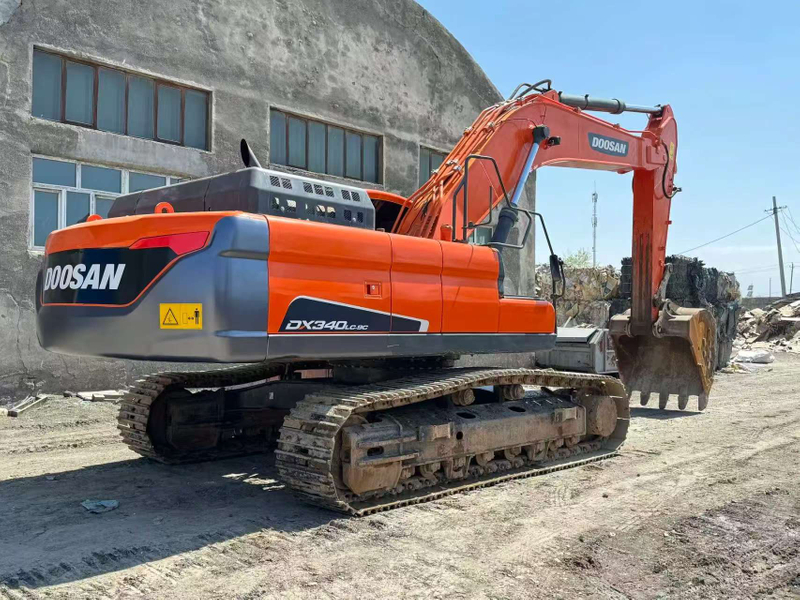

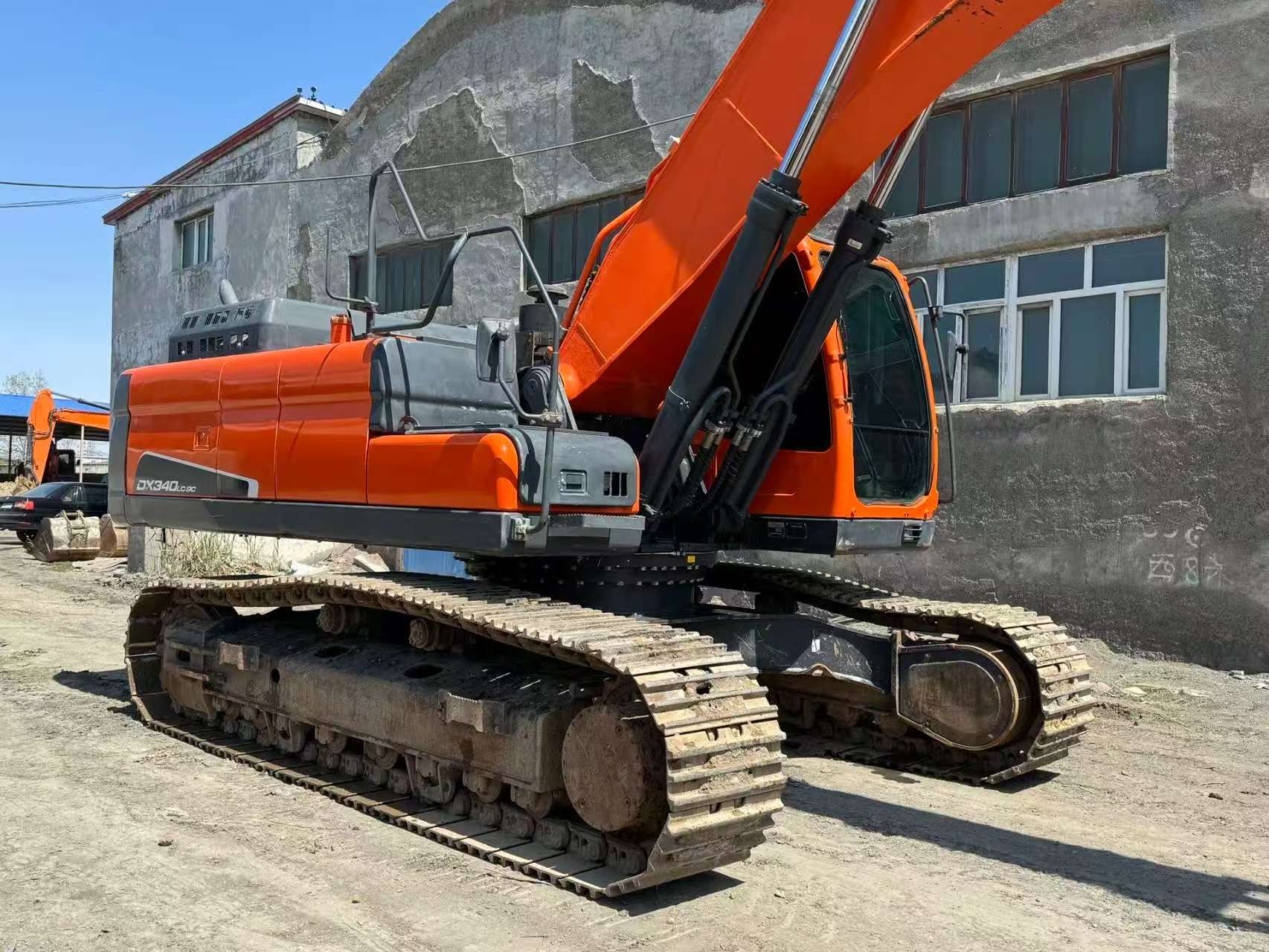

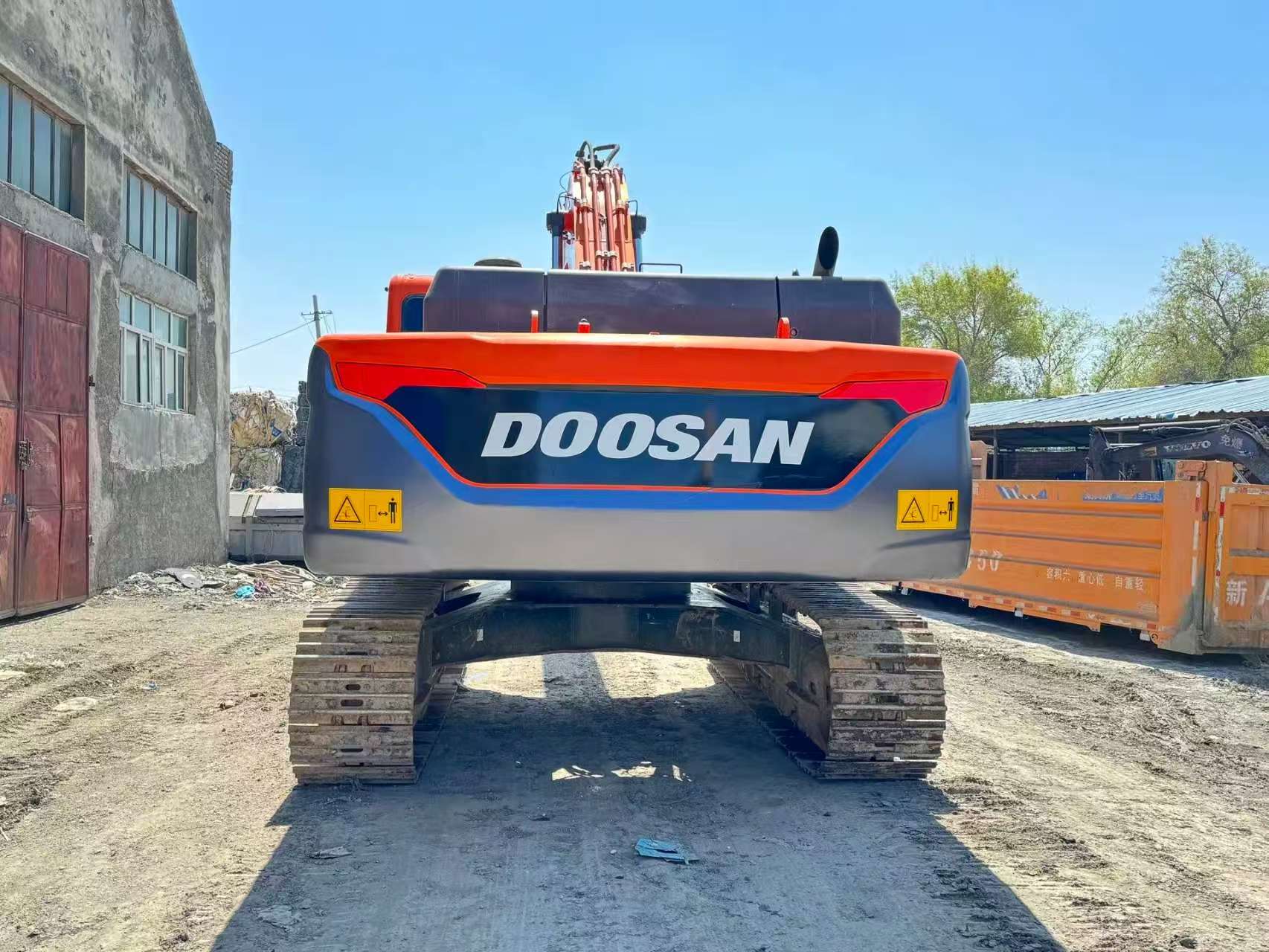

Doosan DX340LC-9C Excavator
Doosan
40,000$
| Quantity: | |
|---|---|
Basic Parameters
| Operating Weight | 34100KG |
| Bucket Capacity | 1.6m ⊃3; |
| Engine Type | Doosan DL08 |
| Rated Power | 191KW/1800rpm |
| Fuel Tank Capacity | 500L |
| Hydraulic oil tank capacity | 280L |
| Walking speed | 5.0km/3.1km/h |
| Rotating speed | 8.6rpm |
Product Features
Powerful yet energy-efficient: Equipped with the Doosan DL08 high-pressure common rail electronic fuel injection engine, rated at 191kW, it boasts high fuel efficiency, low fuel consumption, and durability. Coupled with the comprehensive intelligent matching solution of EPOS system + SPC mode, the SPC mode intelligently senses the actual operating load, automatically adjusts the engine speed and main pump torque, achieving a balanced integration of low fuel consumption, high performance, and reliability.
Advanced hydraulic system: The main pump has a maximum flow rate of 2×266L/min, capable of providing sufficient power for various movements of the excavator, ensuring precise and efficient operation.
High stability: The wide track design provides a larger ground contact area for the tracks, coupled with reasonable weight distribution, which improves the stability and side lifting capacity during dynamic operations, reduces vibration during equipment movement, and makes it less prone to rollover even during slope operations.
Excellent excavation performance: The optimized design of the boom and arm, reinforced bucket, strengthened chassis, and other structural components enhance the reliability and durability of the entire vehicle. The bucket excavation force reaches 246kN, and the arm excavation force is 181kN. The strong excavation force ensures robust durability for mining operations.
Powerful yet fuel-efficient: Equipped with the Doosan DL08 inline turbocharged engine, rated at 159kW/1900rpm. This engine features turbocharging and fuel cooling systems, and is equipped with Doosan's unique EPOS intelligent control system and SPC intelligent fuel-saving technology. It allows for free selection among six modes: P.Mode, S.Mode, E.Mode+SPC, based on actual usage conditions, thereby enhancing fuel efficiency and reducing fuel consumption.
High efficiency of hydraulic system: Equipped with a variable displacement piston pump, the main pump boasts a maximum flow rate of 2×248L/min, providing robust and stable power support for various movements of the excavator, ensuring high efficiency in operations. With a slewing speed of 9.4rpm and a slewing torque of 11760Nm, the system delivers strong slewing force, effectively ensuring efficient combined operations.
Excellent operational performance: The bucket excavation force is 183.3kN, and the arm excavation force is 128.4kN. The boom and arm have fast lifting and lowering speeds, resulting in excellent operational performance. The maximum excavation radius reaches 10702mm, the maximum excavation depth is 7275mm, and the maximum excavation height is 10315mm, meeting the needs of various complex working conditions.
