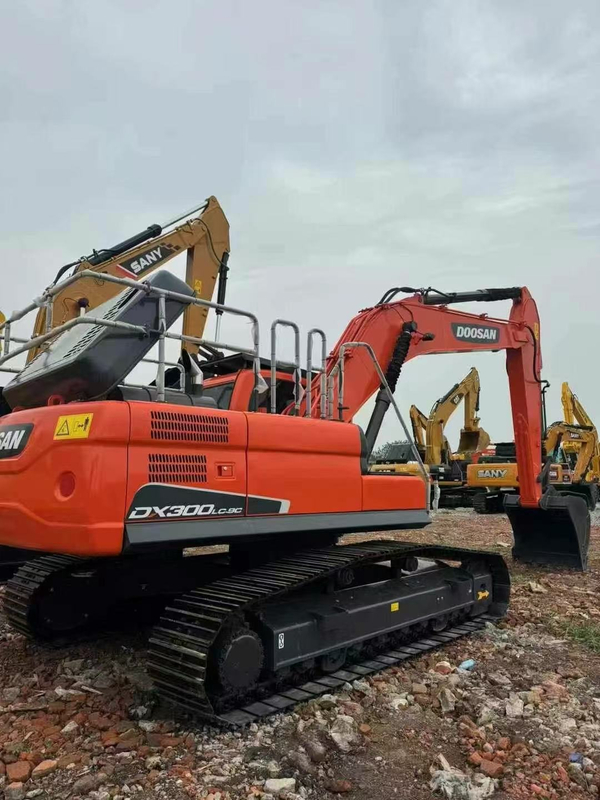

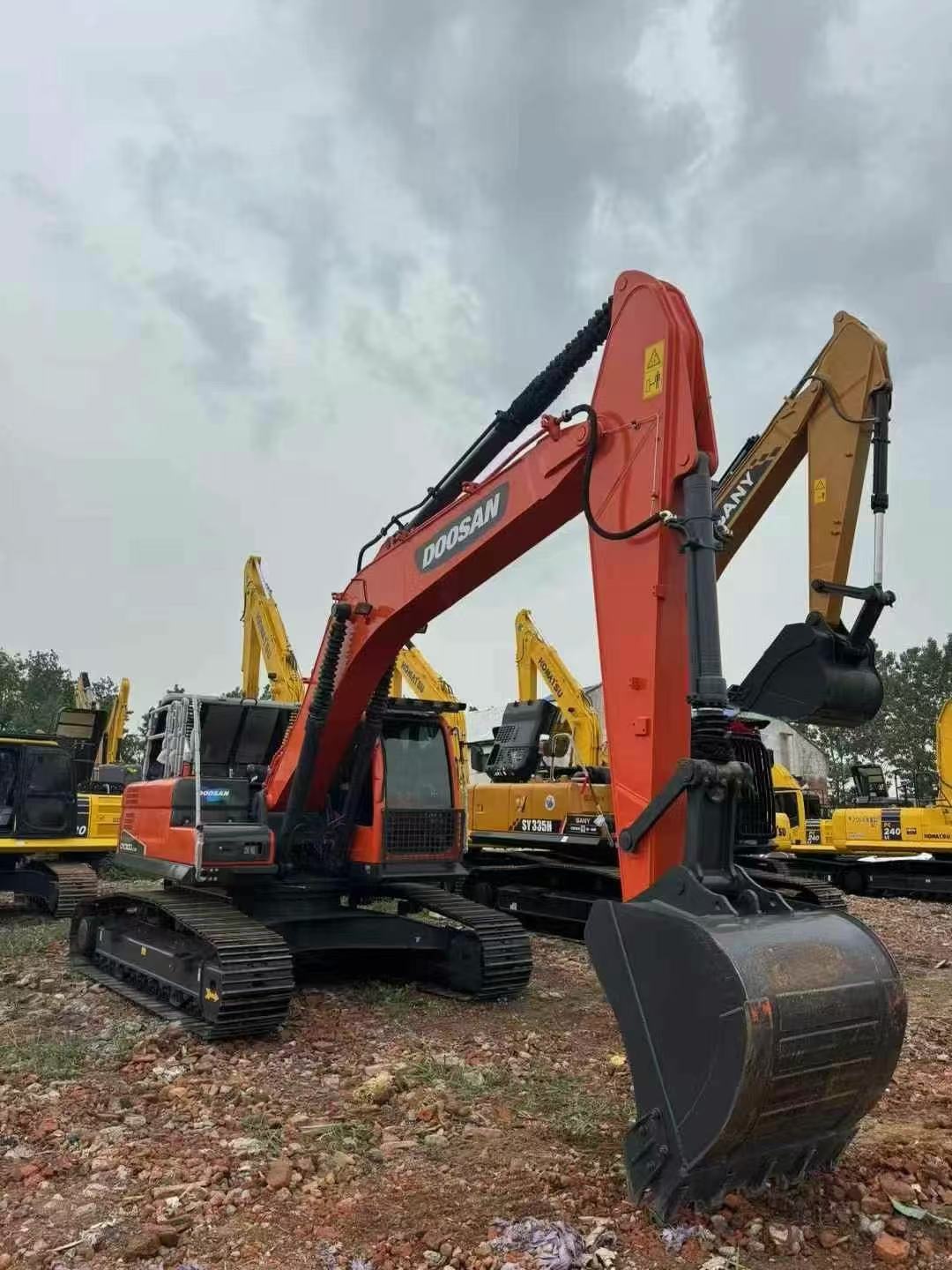

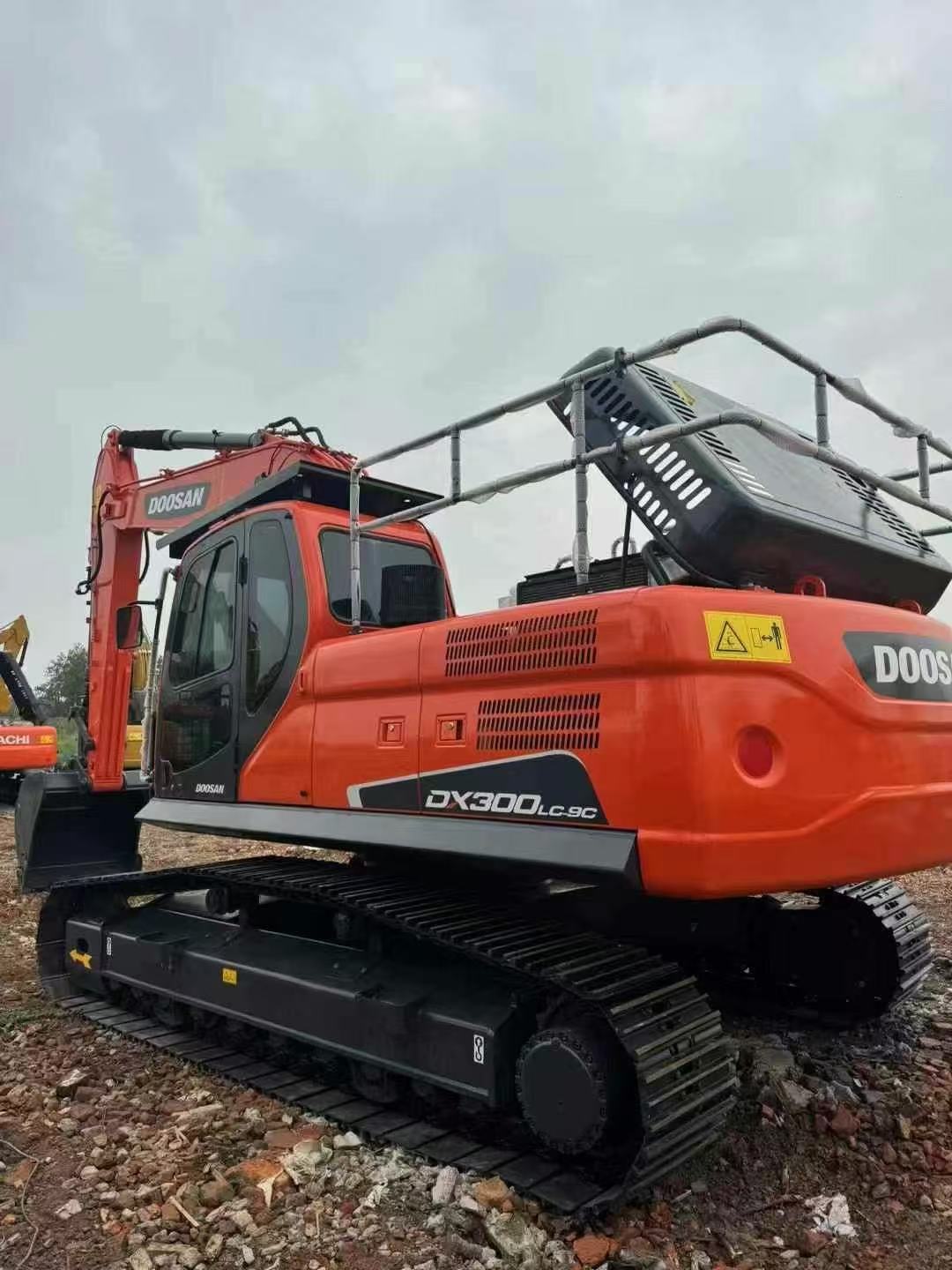

Doosan DX300LC-9C Excavator
Doosan
30,000$
| Quantity: | |
|---|---|
Basic Parameters
| Operating Weight | 30215KG |
| Bucket Capacity | 1.6m ⊃3; |
| Engine Type | Doosan DL08 |
| Rated Power | 159KW/1900rpm |
| Fuel Tank Capacity | 500 |
| Hydraulic oil tank capacity | 280L |
| Walking speed | 500 |
| Rotating speed | 9.4rpm |
Product Features

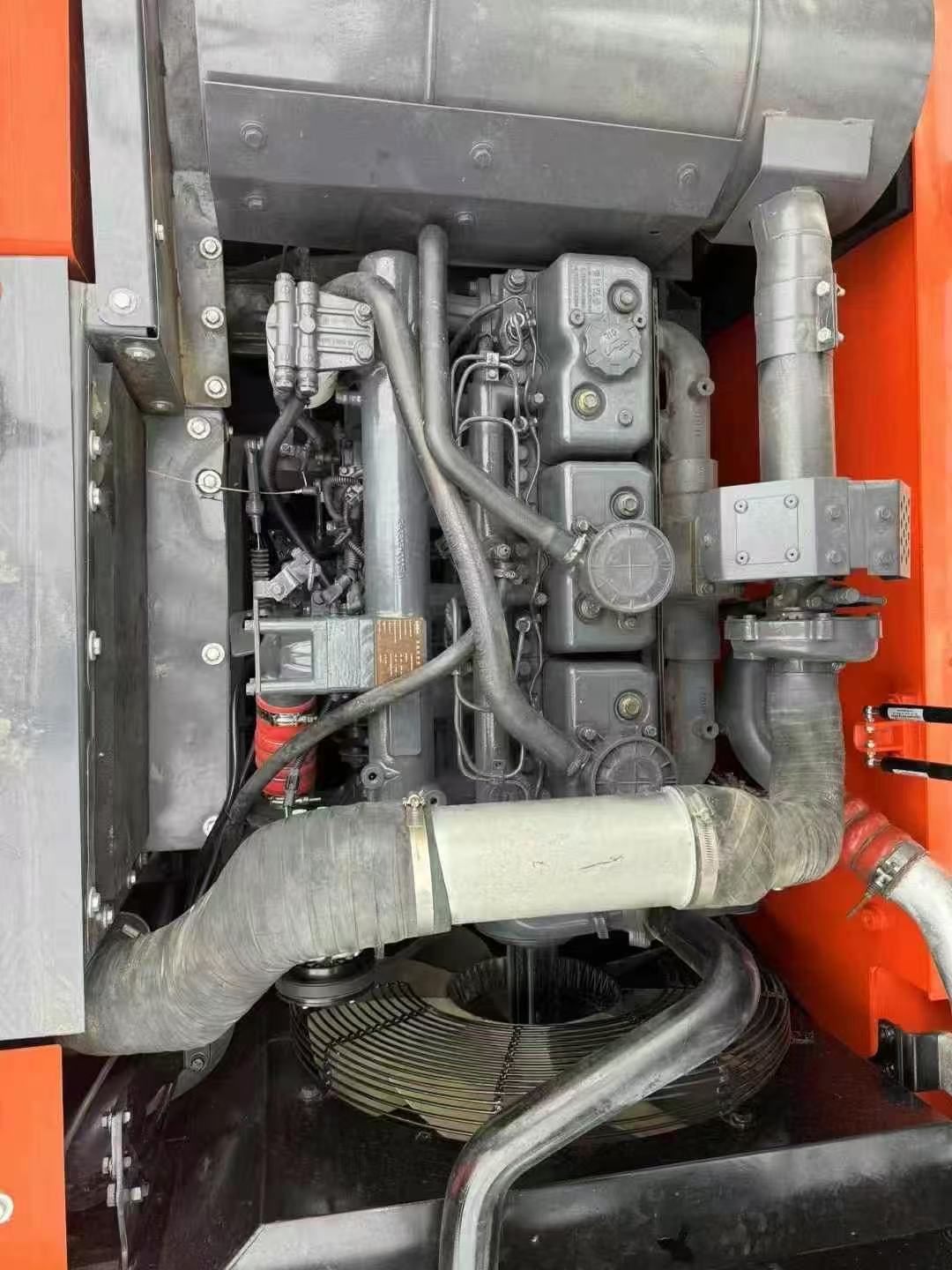

Powerful yet fuel-efficient: Equipped with the Doosan DL08 inline turbocharged engine, rated at 159kW/1900rpm. This engine features turbocharging and fuel cooling systems, and is equipped with Doosan's unique EPOS intelligent control system and SPC intelligent fuel-saving technology. It allows for free selection among six modes: P.Mode, S.Mode, E.Mode+SPC, based on actual usage conditions, thereby enhancing fuel efficiency and reducing fuel consumption.

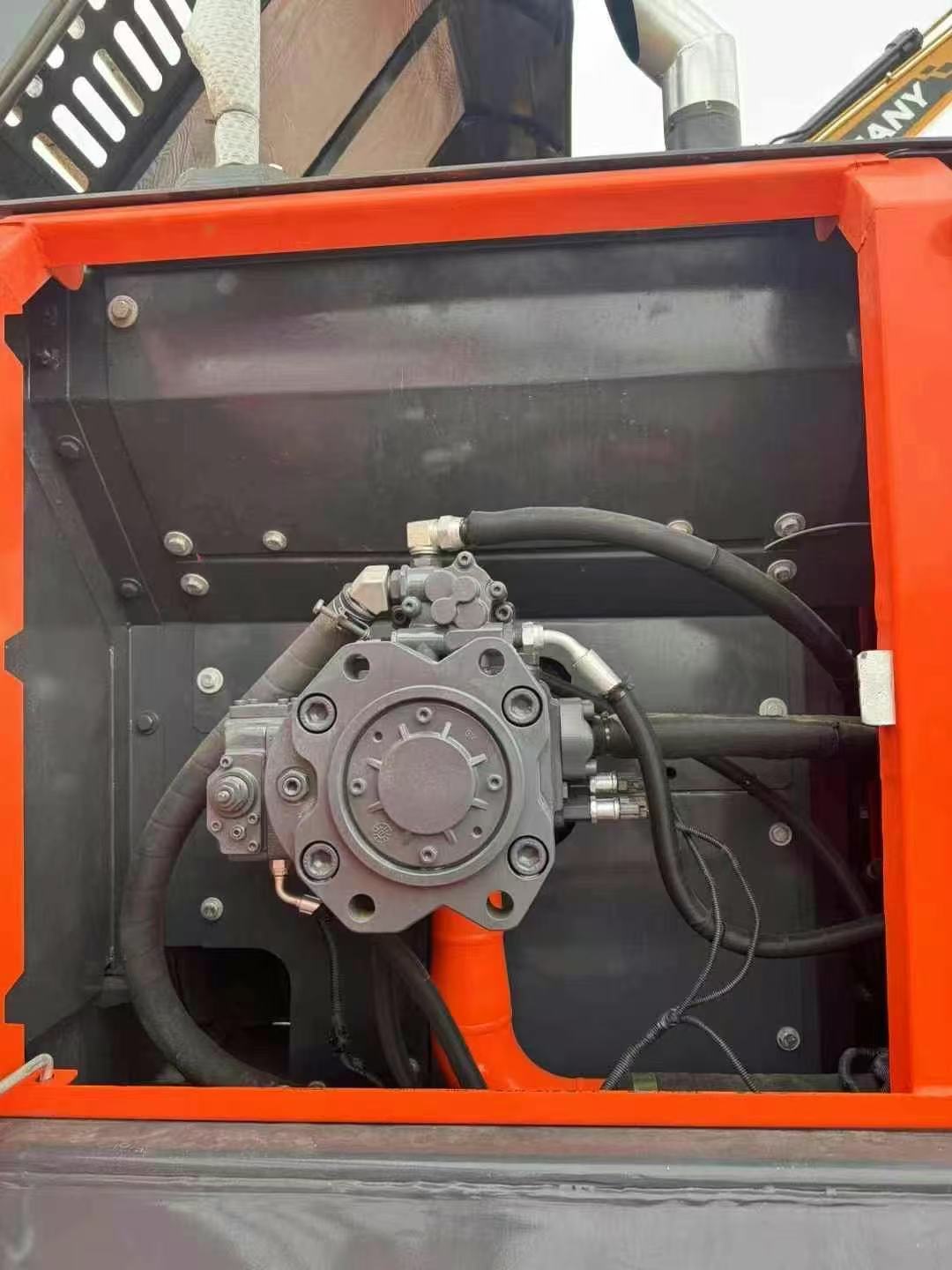

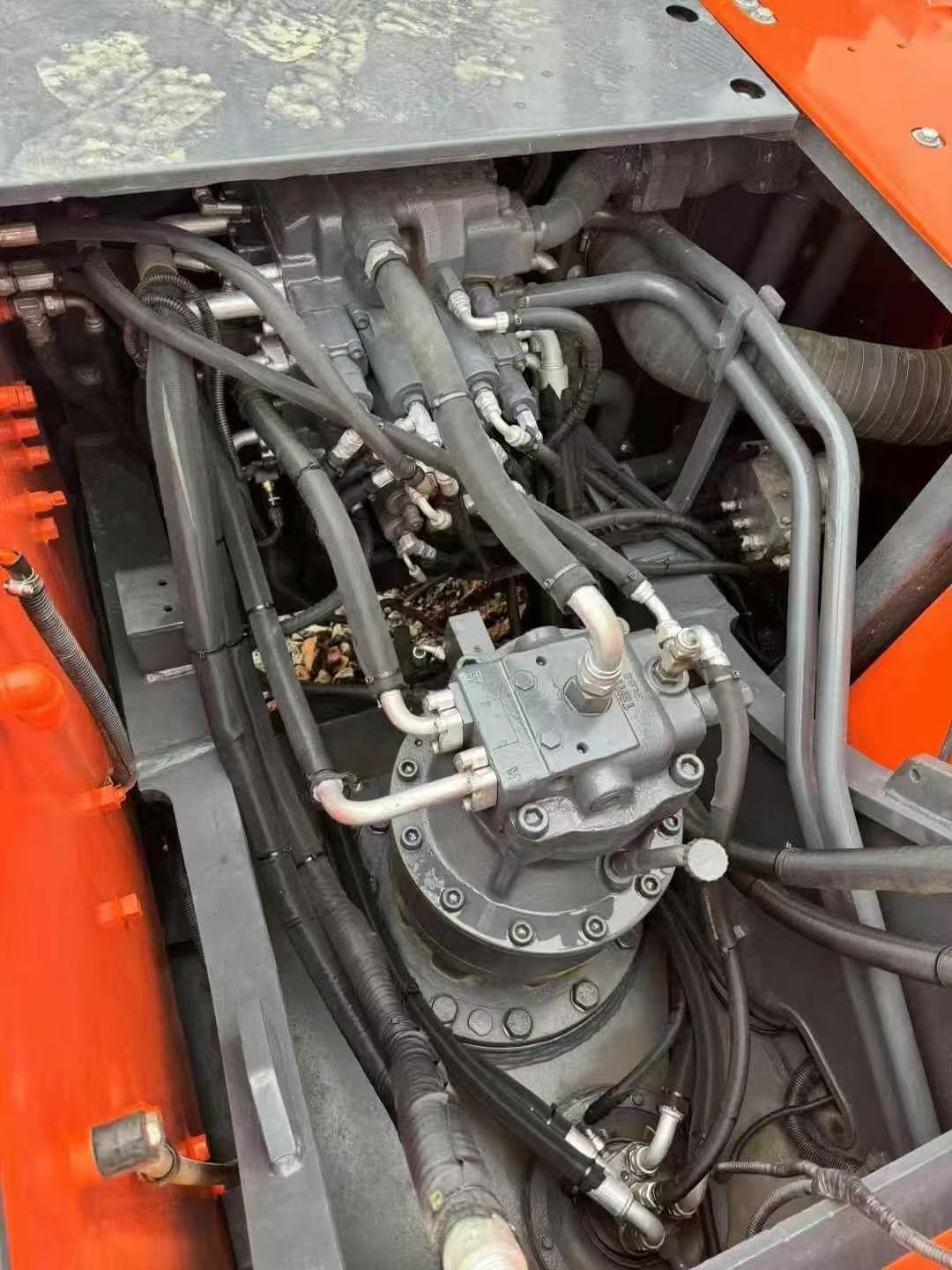

High efficiency of hydraulic system: Equipped with a variable displacement piston pump, the main pump boasts a maximum flow rate of 2×248L/min, providing robust and stable power support for various movements of the excavator, ensuring high efficiency in operations. With a slewing speed of 9.4rpm and a slewing torque of 11760Nm, the system delivers strong slewing force, effectively ensuring efficient combined operations.
Excellent operational performance: The bucket excavation force is 183.3kN, and the arm excavation force is 128.4kN. The boom and arm have fast lifting and lowering speeds, resulting in excellent operational performance. The maximum excavation radius reaches 10702mm, the maximum excavation depth is 7275mm, and the maximum excavation height is 10315mm, meeting the needs of various complex working conditions.
