Volvo EC140DL Mini Excavator
Volvo
18,000$
| Quantity: | |
|---|---|
Basic Parameters
| Operating Weight | 20090KG |
| Bucket Capacity | 0.9m ⊃3; |
| Engine Type | D5E |
| Rated Power | 123KW/2000rpm |
| Fuel Tank Capacity | 375L |
| Hydraulic oil tank capacity | 160L |
| Walking speed | 3.6/5.8km/h |
| Rotating speed | 12.3rpm |
Product Features

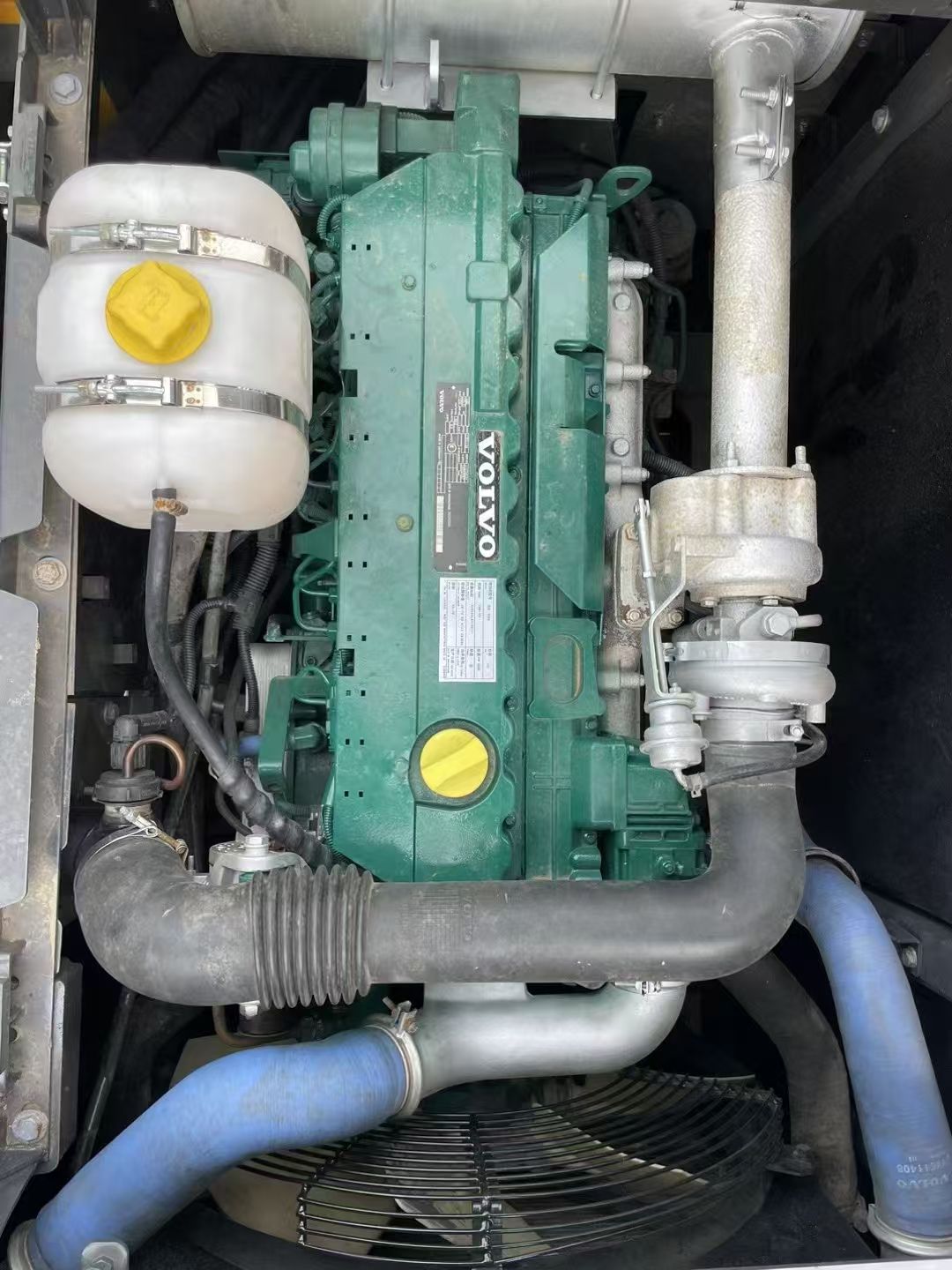

Powerful and fuel-efficient: Equipped with a Volvo D5E engine, the total power reaches 123kW, which can output high torque at low speeds, achieving a perfect combination of high power and low fuel consumption. The machine adopts Volvo's unique technology, combining the operating mode with the throttle control device. The driver can choose modes such as I (idle), F (fine), G (regular), H (heavy), and P (power) according to different operating needs, and the system will automatically set the corresponding speed to achieve maximum efficiency. In addition, ECO mode can further improve fuel efficiency by 5% without sacrificing any performance under most operating conditions.

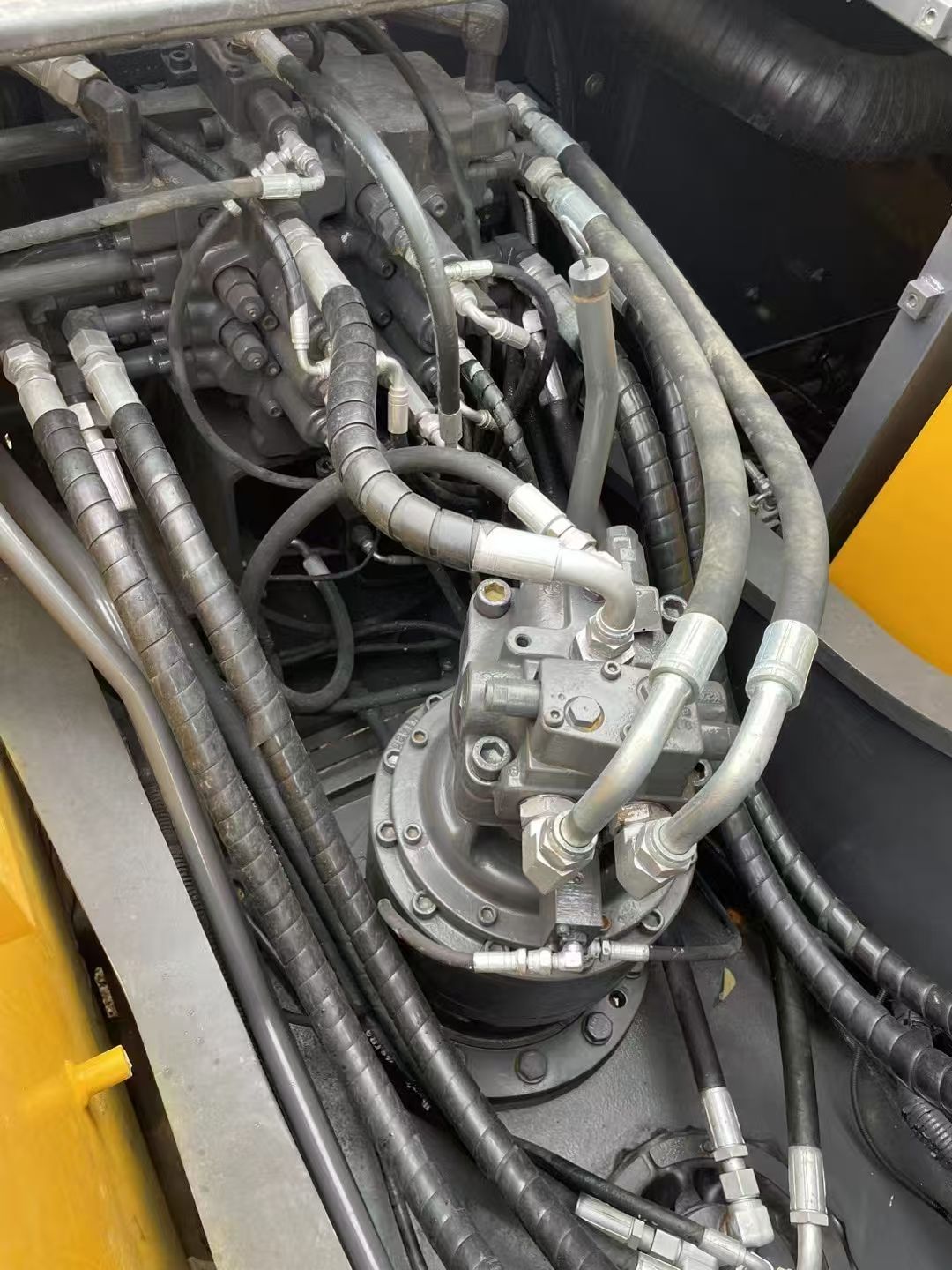

Advanced hydraulic system: adopting a new type of electronic hydraulic system, shifting gears is smoother and more efficient, not only improving fuel efficiency, but also enhancing operability and shortening response time. The installation of the boom swing priority valve further improves operability, making it an ideal choice for truck loading.
High homework efficiency: The turning speed has increased by 5% compared to the previous generation excavator, and the walking speed has increased by 6%, which can complete more work tasks in less unit time and improve production efficiency. The maximum excavation radius is 9930mm, the maximum excavation depth is 6730mm, the normal excavation force of the bucket (SAE J1179) is 123kN, and the normal excavation force of the boom (SAE J1179) is 89kN, indicating strong operational capability.
