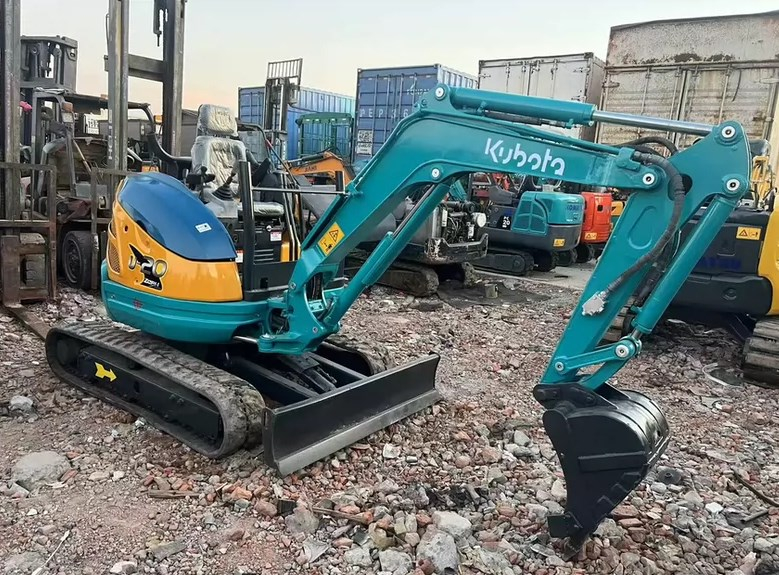

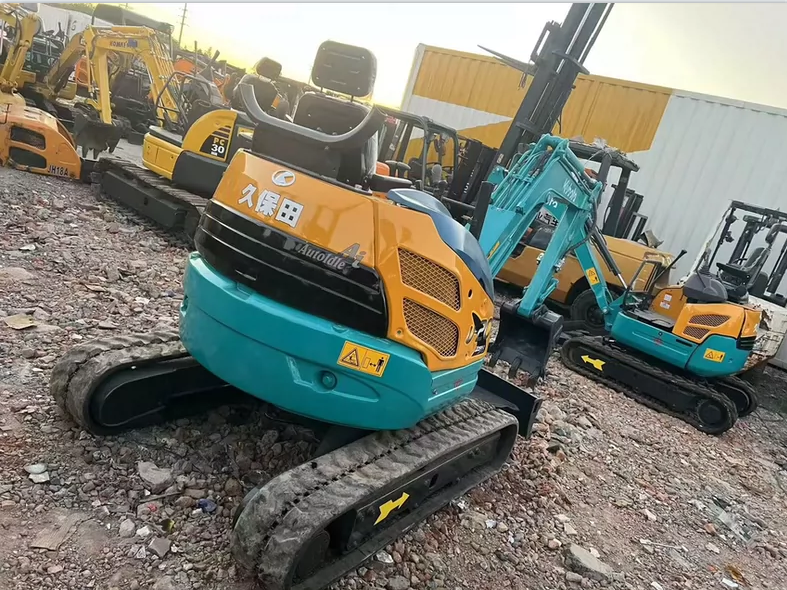

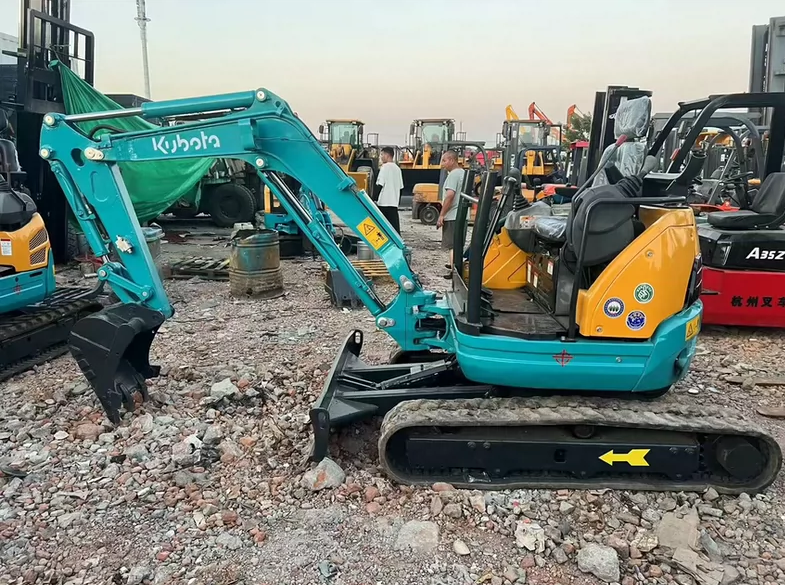

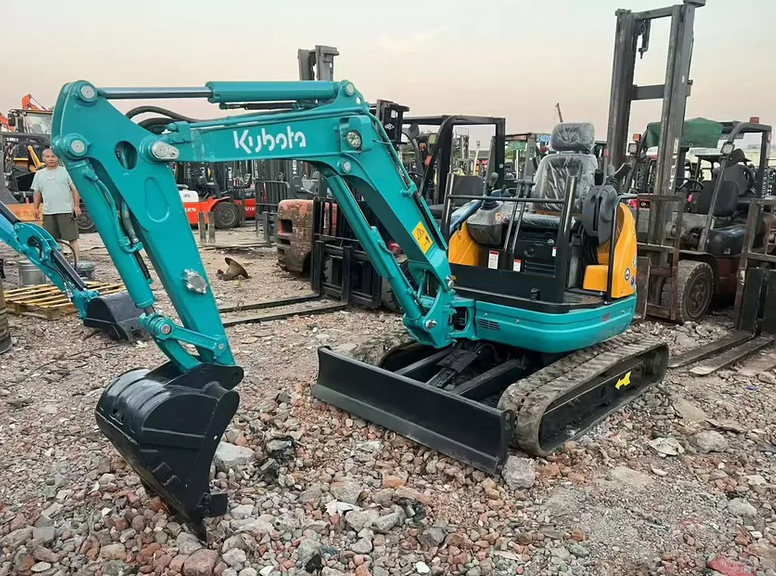

Kubota U20 Mini Excavator
Kubota
11,000$
| Quantity: | |
|---|---|
Basic Parameters
| Operating Weight | 2,365KG |
| Bucket Capacity | 0.054m³ |
| Engine Type | D1105 - E4 |
| Rated Power | 19PS (14kW) / 2,200rpm |
| Fuel Tank Capacity | 28L |
| Hydraulic oil tank capacity | 20 L |
| Walking speed | 2.1km/h/4.0km/h |
| Rotating speed | 9.6rpm |
Product Features

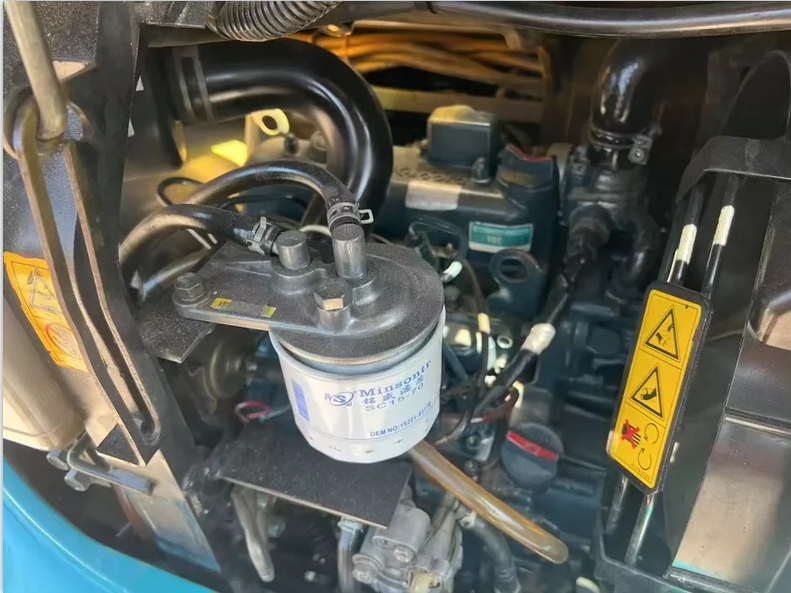

owerful and Environment - friendly Engine: Equipped with the Kubota D1105 - E4 engine, the total displacement is 1,123ml, and the rated output power is 14kW. This engine has the characteristics of fuel - saving, low - noise, and low - vibration, and can also easily start in low - temperature environments, meeting various construction requirements.
Flexible Operation: It has a retractable track design, and the machine width can be easily switched between 1,300mm and 1,500mm. The 1,300mm width is convenient for passing through narrow spaces such as the doors and stairs of commercial buildings, while the 1,500mm width provides better stability during construction. In addition, it adopts a zero - tail swing design, with a rear minimum swing radius of only 710mm, which can operate flexibly in narrow spaces.
Advanced Hydraulic System: The U20 is equipped with a three - pump hydraulic system, in which the boom, stick, and slewing adopt independent 3 - pump systems, equipped with control valves and variable pumps with a wider control range. This enables fast, smooth, and powerful operations. It also has a straight - forward circuit, which can ensure stable straight - line travel when operating the boom.
