Kobeoco SK200D Excavator
Kobelco
20,000$
| Quantity: | |
|---|---|
Basic Parameters
| Operating Weight | 20600KG |
| Bucket Capacity | 1.0m ⊃3; |
| Engine Type | F4.5CS4145 |
| Rated Power | 108kW/2200rpm |
| Fuel Tank Capacity | 320L |
| Hydraulic oil tank capacity | 140L |
| Walking speed | 6.0/3.6km/h |
| Rotating speed | 13.3rpm |
Product Features
Powerful: Equipped with a Cummins F4.5CS4145 engine, featuring a four-stroke, water-cooled design, overhead camshaft, direct injection, built-in intercooling, and turbocharging, it delivers abundant power output and can meet various excavation needs.

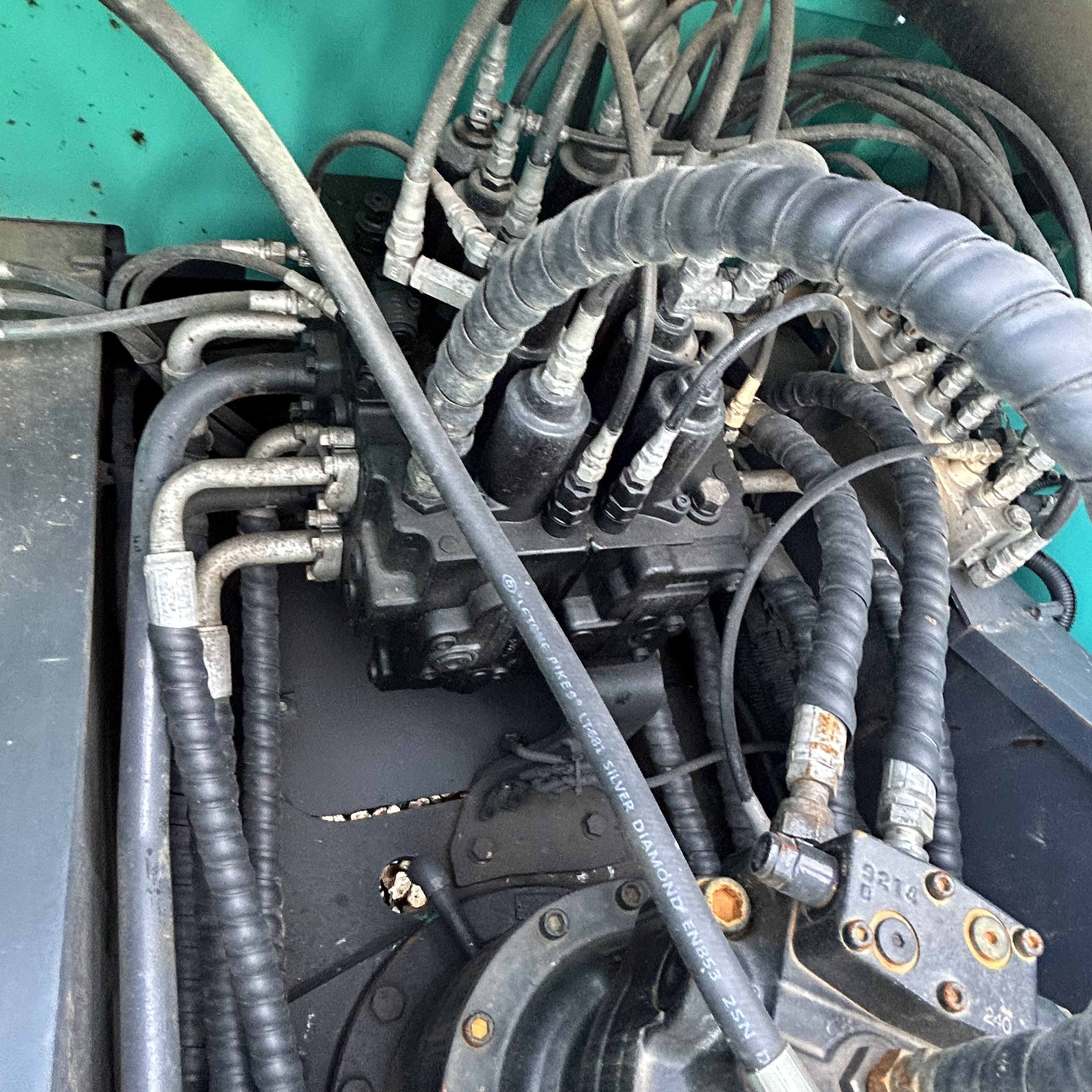

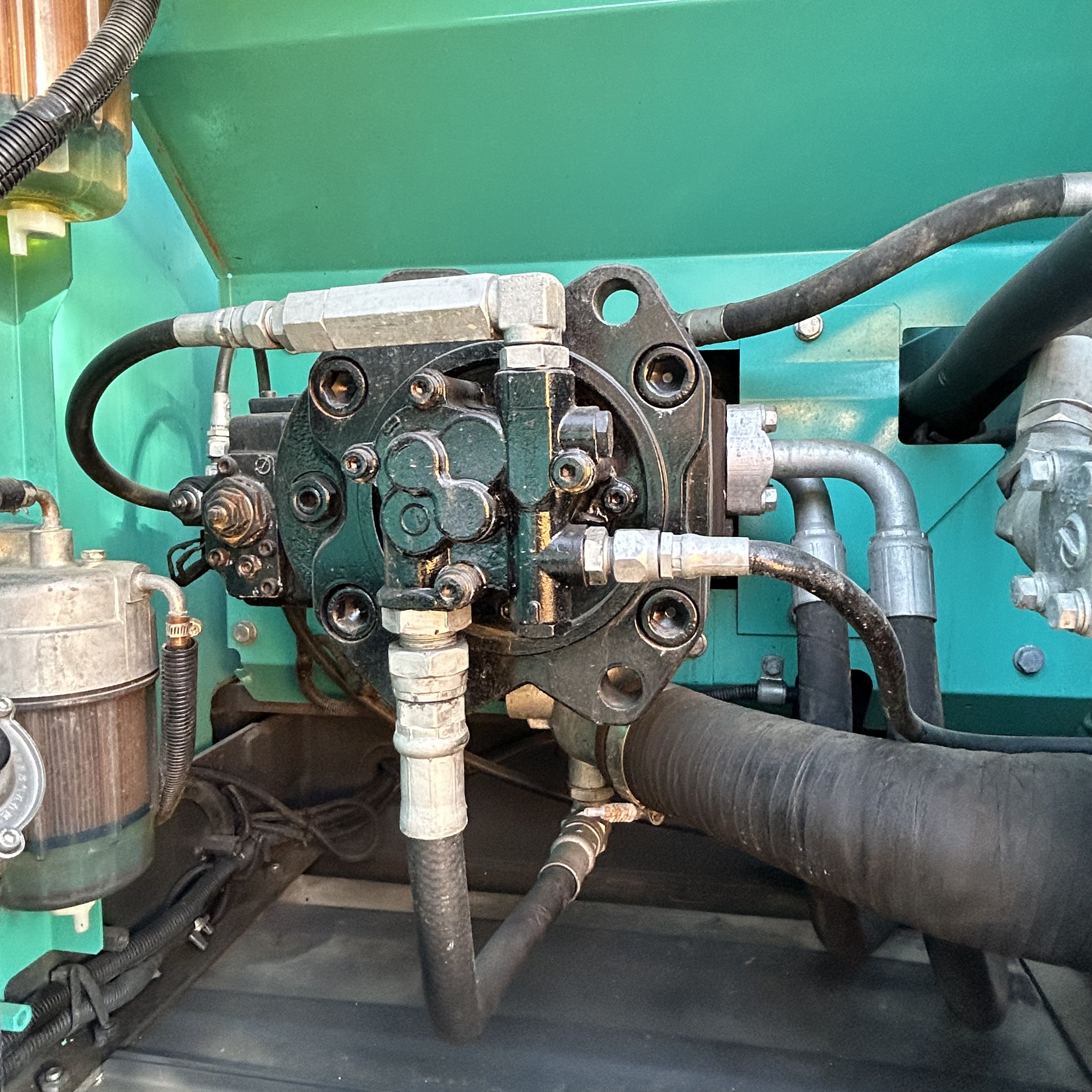

Advanced hydraulic system: It adopts a dual variable displacement axial piston pump + pilot gear pump. The maximum flow rate of the hydraulic pump can reach 2×195L/min + 1×20L/min. The safety valve setting pressure is 34.3MPa for the boom, arm, and bucket, 37.8MPa in boosting state, 29.0MPa for the travel circuit, and 28MPa for the rotation circuit. It can achieve efficient hydraulic transmission and flexible operation.
High operational efficiency: By optimizing the shape of the excavator bucket, reducing excavation resistance, improving fuel utilization, increasing rotational torque, enhancing excavation speed, and shortening operation cycle time, compared to the SK210LC-10 8 mode, the production efficiency is increased by 13% and the earthwork volume is increased by 7%.
